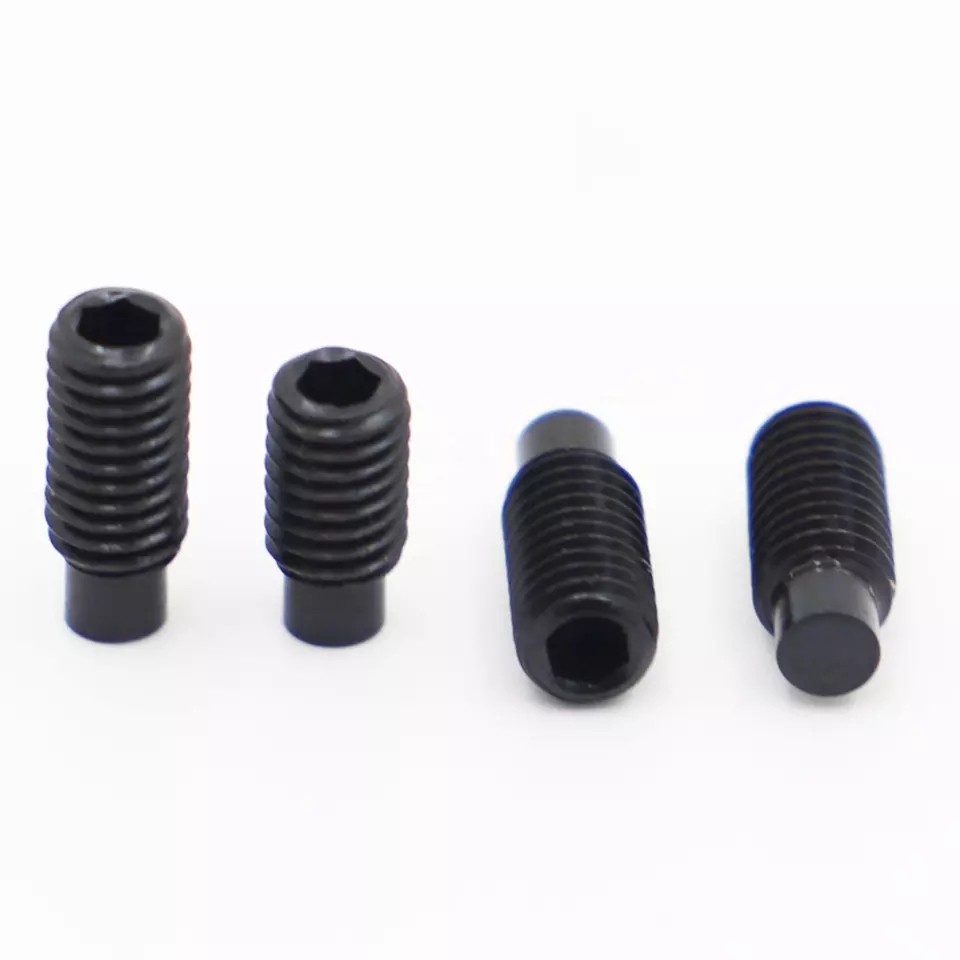

The DIN 915 standard is a widely recognized industrial standard that specifies the characteristics and dimensions of set screws with a hexagon socket. These screws are primarily used to secure two or more components together in a variety of mechanical and industrial applications. In this article, we will delve into the details of DIN 915 and explore its applications, dimensions, and other important aspects.

The Purpose and Application of DIN 915

The DIN 915 set screw is commonly used in industries dealing with machinery, automotive manufacturing, and construction. Its primary purpose is to provide a secure and tight connection between two components, preventing any movement or separation under various conditions such as vibration, torque, or axial load.

This type of screw is often used in situations where a permanent or semi-permanent connection is required. The hexagon socket design allows for easy tightening and loosening using an Allen key or hex wrench. The DIN 915 set screw is known for its reliable grip and resistance to loosening, making it a popular choice in many industries.

Dimensions and Specifications

The DIN 915 set screw is available in various sizes and materials, allowing for flexibility in choosing the right screw for specific applications. The standard covers dimensions such as thread size, thread length, overall length, and key size.

The thread size of DIN 915 set screws ranges from M1.6 to M24, providing a wide range of options for different requirements. The length of the threaded portion can vary, typically ranging from 3mm to 200mm, allowing for secure fastening in a variety of applications. The overall length of the screw includes both the threaded and unthreaded portions and can be selected based on the specific needs of the application.

Additionally, the key size of DIN 915 set screws determines the type of Allen key or hex wrench needed for tightening or loosening the screw. This dimension is crucial to ensure proper installation and maintenance, as using the wrong key size can damage the screw or cause difficulties in adjustment.

Summary

The DIN 915 standard provides clear specifications for set screws with a hexagon socket, allowing for the secure connection of various components in mechanical and industrial applications. Its popularity in industries such as machinery, automotive manufacturing, and construction is mainly due to its reliability, ease of use, and resistance to loosening. By adhering to the dimensions and specifications outlined in the DIN 915 standard, manufacturers and users can ensure proper installation and maintenance, leading to enhanced safety and performance in their applications.
