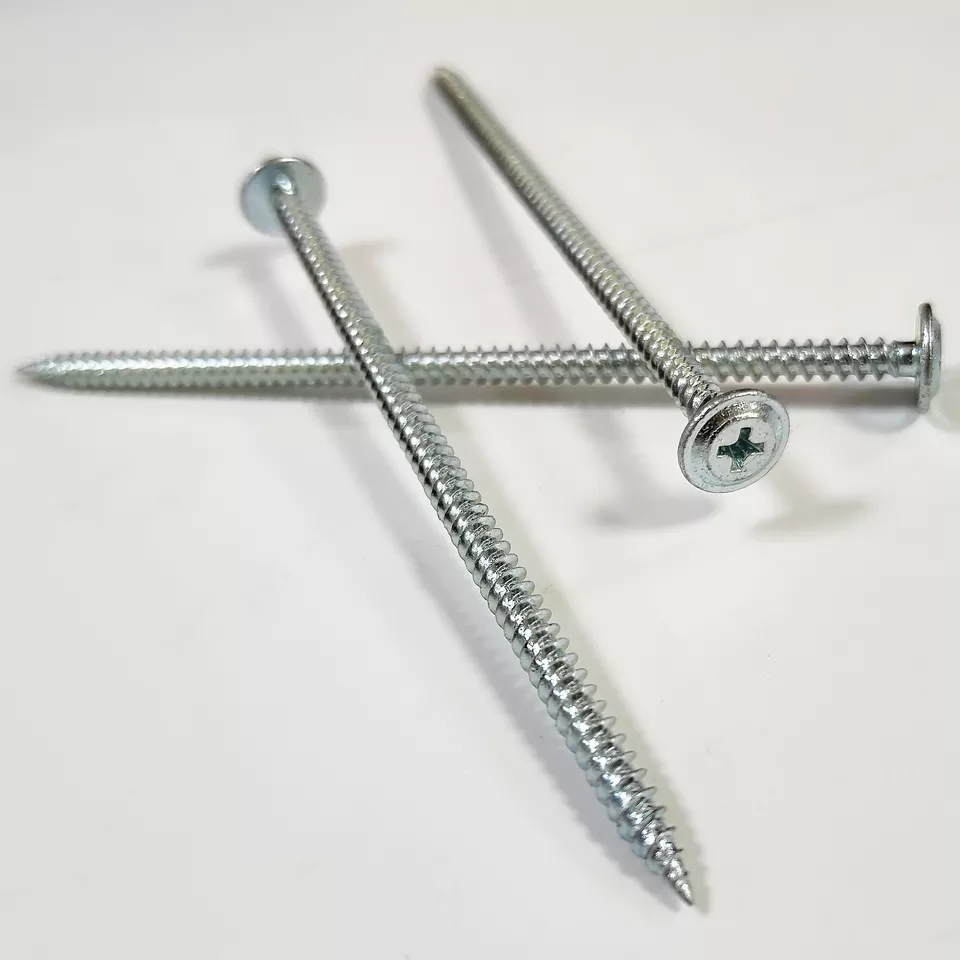

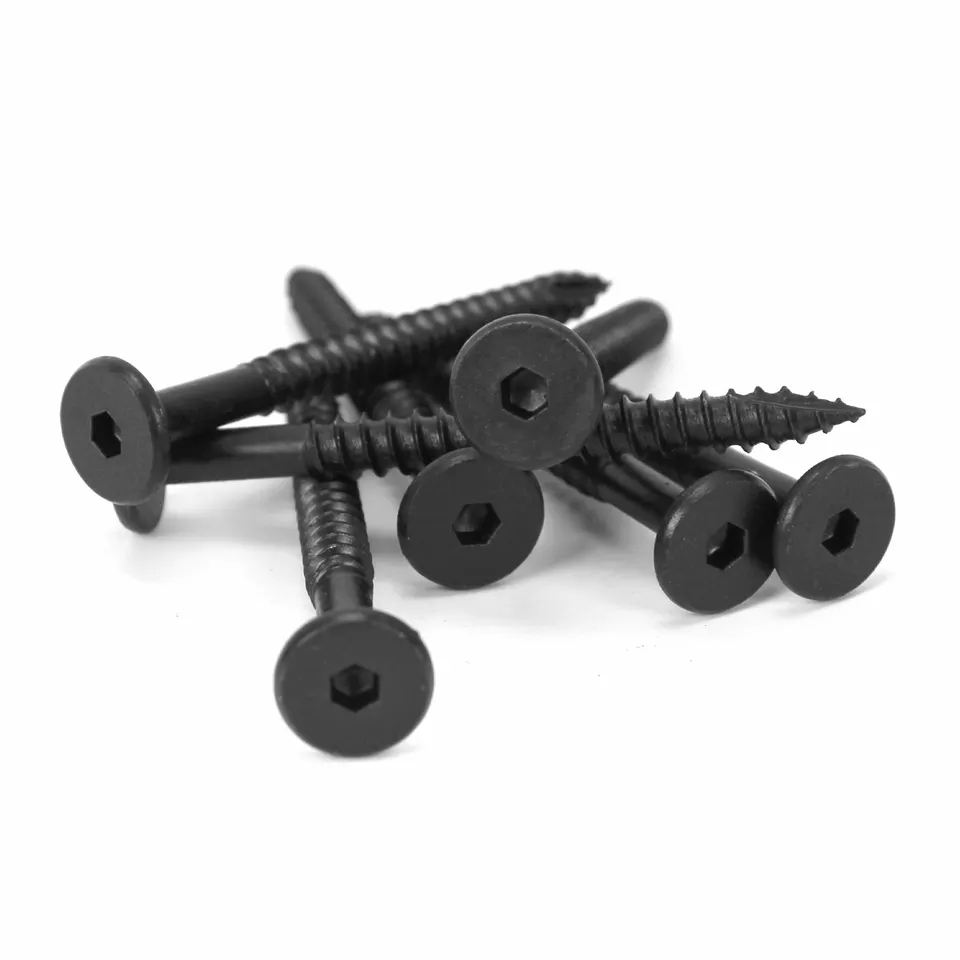

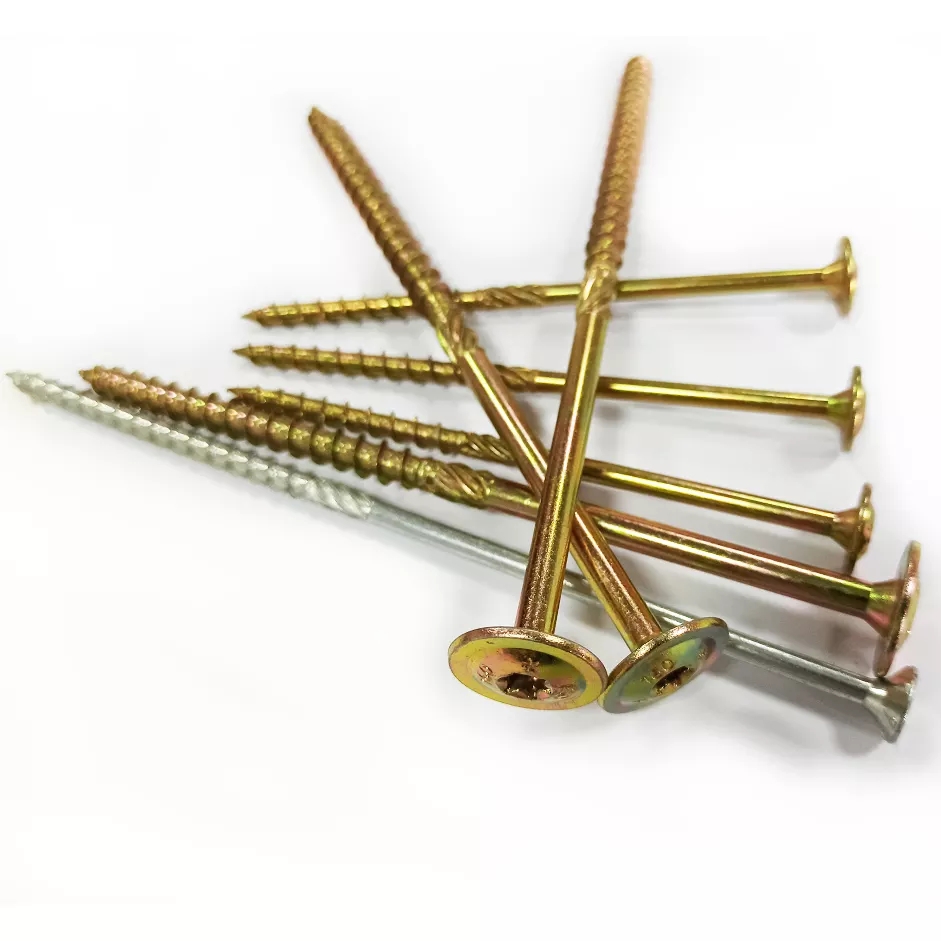

Wafer Head Cross Torx Hex Self Tapping Screws
Product name | Wafer head Cross/Torx/Hex recess self tapping screws |
Material | C1022/1022A/Q195/Q235/45#/55#/22A |
Surface Treatment | Phosphated, White/Yellow Zinc Plated. |
Performance | High Tension |
Thread | Fine Thread, Coarse Thread,full thread ,part thread |
Drive | Cross ,Torx ,Hex ...or customized |
Shank Diameter | 1.2mm-10mm |
Length | 19mm-300mm |
Point | Drill point, Sharp point. |
Package | PE bag+Carton box+Pallet |
Trade term | EXW,FOB etc |
Payment way | TT ,Western Union ,Paypal |
Payment term | 30% TT in advance and 70% TT before shipment |
Delivery time | 7-15 working days according to order quantities |
Applications | Building construction, decoration field, bicycle parts, wooden furniture, electrical component, household etc |
HS Code | 7318140090 |
Detailed Information of Thread
Fine thread standard | |||||
head width | thread diamter | diameter | |||
6# | 3.5 | 7.9-8.10 | 3.40-3.60 | 13-19 | 0.5 |
7# | 3.9 | 7.9-8.10 | 3.70-3.90 | 25-30 | 0.8 |
8# | 4.2 | 7.9-8.10 | 4.0-4.30 | 25-30 | 1.2 |
10# | 4.8 | 8.5-9.0 | 4.70-4.90 | 55-90 | 1.5 |
100-152 | 2.5 | ||||
Coarse thread standard | |||||
head width | thread diamter | diameter | |||
6# | 3.5 | 7.9-8.10 | 3.65-3.90 | 13-19 | 0.5 |
7# | 3.9 | 7.9-8.10 | 3.90-4.20 | 25-30 | 0.8 |
8# | 4.2 | 7.9-8.10 | 4.30-4.60 | 25-30 | 1.2 |
10# | 4.8 | 8.5-9.0 | 4.90-5.30 | 55-90 | 1.5 |
